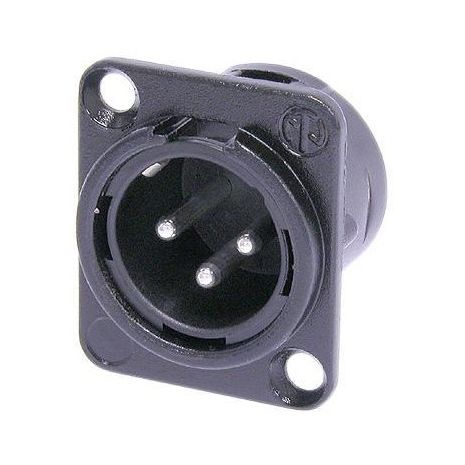

Терминал XLR Neutrik NC3MD-L-BAG-1 черный

В наличии
145290

980 руб.

Бренд:

Разъем XLR панельный, 3 контакта, штекер ("папа"), тип-D, черный корпус, посеребренные контакты.

Electrical...
+
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Approvals UL
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Product
Title NC3MD-L-BAG-1
Connection Type XLR
Gender male
